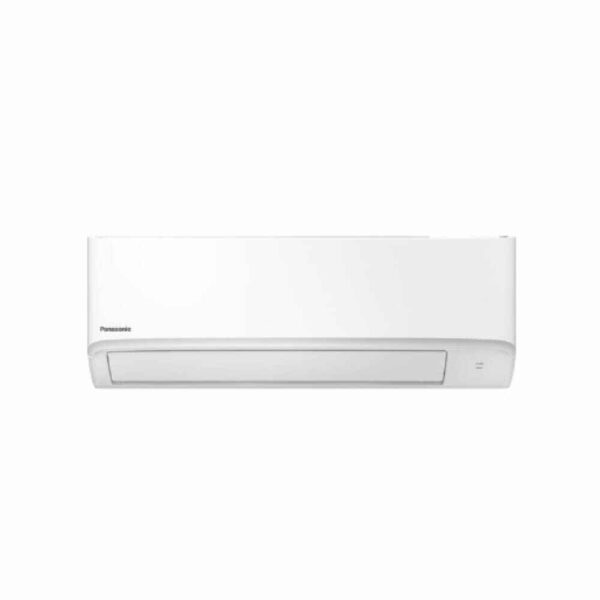

Panasonic 1.5HP R32 Standard Non-Inverter Air Conditioner PSN-CSPN12WKH

R32 Refrigerant in Air Conditioning SystemR32 refirgerant represents innovation in every way. It is an excellent heat transfer medium which leads to greater energy efficiency and cost effectiveness. R32 refrigerant also has low global warming potential, hence it’s friendlier to the environment.1) R32 has higher cooling capacity thereby increase heat transer efficiency.2) R32 consumes less energy, helping you to save on electricity costs.3) R32 has zero impact on the ozone layer, therefore it is environmentally friendly.

POWERFUL Mode for Instant Cooling ComfortEnjoy faster cooling with just a push of button.POWERFUL Mode will run both the compressor and indoor fan at super high speed, so you get to enjoy powerful cooling, even on a hot day.POWERFUL Mode cools your room faster by 18%* the moment you switch on your air conditioner.*Comparison of Powerful Cool Mode & normal cool mode by using 1.5HP Inverter Mode.

Specifications

ModelIndoor (50Hz): CS-PN12WKH-1Outdoor (50Hz): CU-PN12WKH-1Refrigerant TypeR32Cooling C(min-max) kW: 3.52(min-max)Btu/h: 12,000EER(min-max) Btu/hW: 11.21(min-max) W/W: 3.29CSPF: 3.43Electrical DataVoltage (V): 230Running Current (A): 4.8Power Input (W): 1,070Moisture RemovalL/h: 2.0Pt/h: 4.2Air CirculationIndoor m3/min (ft3/min): 11.6 (406)Outdoor m3/min (ft3/min): 29.8 (1,050)Noise LevelIndoor (H/L/Q-Lo) (dB-A): 41/29Outdoor (H / L) (dB-A): 51DimensionsHeight (mm): 290 (542)Height (inch): 11-7/16 (21-11/32)Width (mm): 779 (780)Width (inch): 30-11/16 (30-23/32)Depth (mm): 209 (289)Depth (inch): 8-1/4 (11-13/32)Net WeightIndoor kg (lb): 8 (18)Outdoor kg (lb): 26 (57)Refrigerant Pipe DiameterLiquid Side (mm): ø 6.35Liquid Side (inch): ¼Gas Side (mm): ø9.52Gas Side (inch): 3/8Pipe ExtensionChargeless Pipe Length (m): 7.5Maximum Pipe Length (m): 20Maximum Elevation Length (m): 15Additional Refrigerant Gas* (g/m): 10Power Supply: IndoorCleaner AirOdour-Removing Function: YesRemovable, Washable Panel: YesSLEEP: YesPowerful Mode: YesQuiet Mode: YesSoft Dry Operation Mode: YesAirflow Direction Control (Up Down): YesManual Horizontal Airflow Direction Control: Yes24-Hour ON OFF Real Setting Timer: YesLCD Wireless Remote Control: YesWired Remote Control: Yes (Optional)ReliabilityRandom Auto Restart (32 Restart Patterns): YesBlue Fin Condenser: YesLong Piping (Numbers indicate the maximum pipe length): 20mTop-Panel Maintenance Access: YesNOTEPlease do not use copper pipes that are less than 0.6mm in thickness.*When pipes are not extended from the standard pipe length, the required amount of refrigerant is already in the unit.
